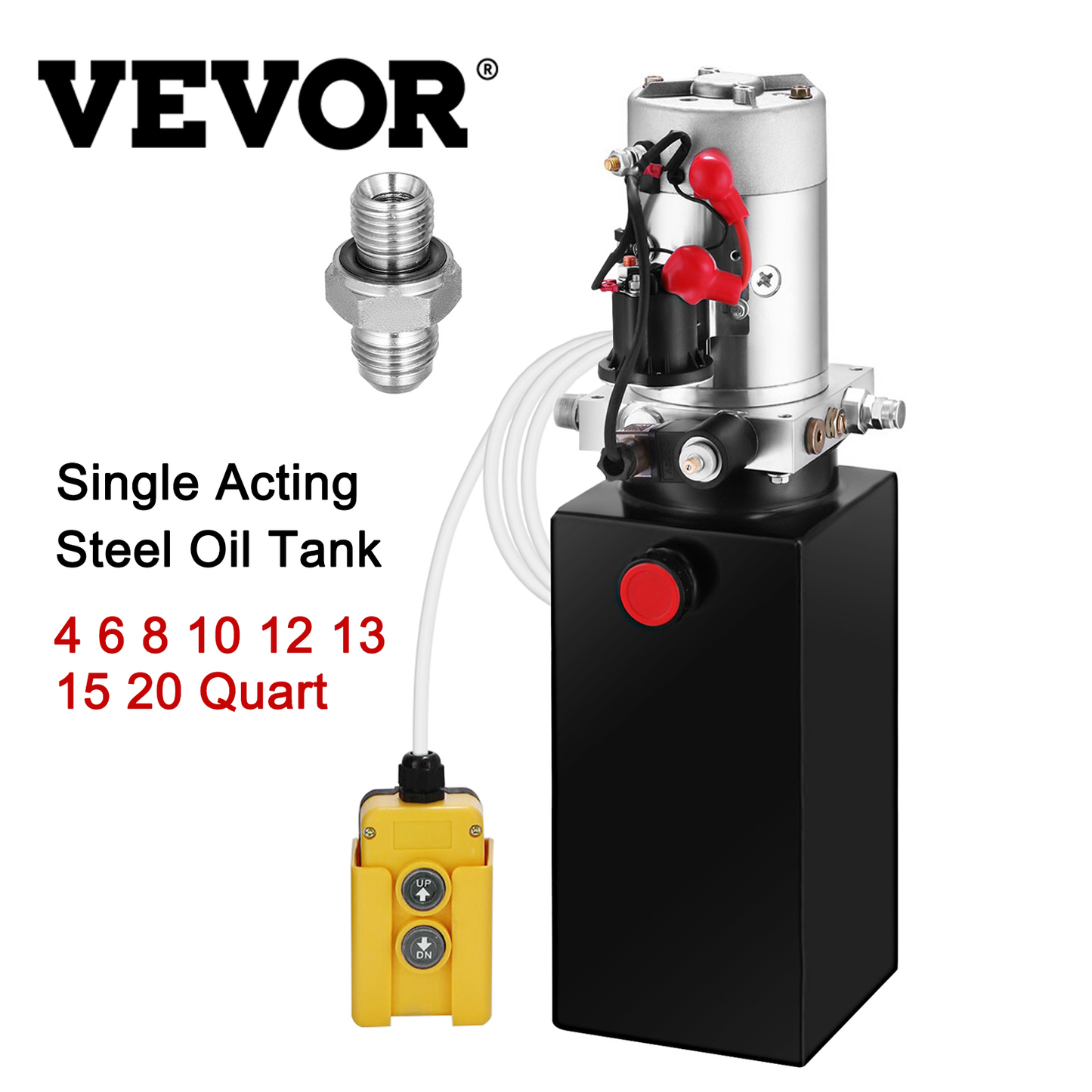

Car Jack Hydraulic Pump 12V DC Single Acting 4-20 Quart Dump Trailer Power Unit Remote Control Crane Truck Car Lift Motor
Car Jack Hydraulic Pump 12V DC Single Acting 4-20 Quart Dump Trailer Power Unit Remote Control Crane Truck Car Lift Motor
Couldn't load pickup availability
Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
Product Details
Easy to Use
Reliable Quality
Rapid Start
Wide Application
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Material of Tank: Metal
Power / Gravity: Single Acting Power-Up/Gravity Down
Reservoir: 13 Quart
Port: SAE # 6 Port, Horizonal mount
Gross Weight: 34.8 lb (15.8 kg)
Package Dimensions (L x W x H): 23.2" x 11.4" x 12" (59 x 29 x 31cm)
1 x 13 Quart 12V DC Single Acting Hydraulic Pump Power Metal Reservoir
1 x English Manual
Several Related Accessories
Tank Material: Metal
Displacement of hydraulic pump: 0.562-4.350GPM(0.75-5.8ML/R, Applicable to all single power unit for 4, 6, 8, 10 quart)
Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 1.6KW (Applicable to all single power unit for 4, 6, 8, 10 quart)
Motor voltage: DC12V
Tank Capacity: 4 Quart

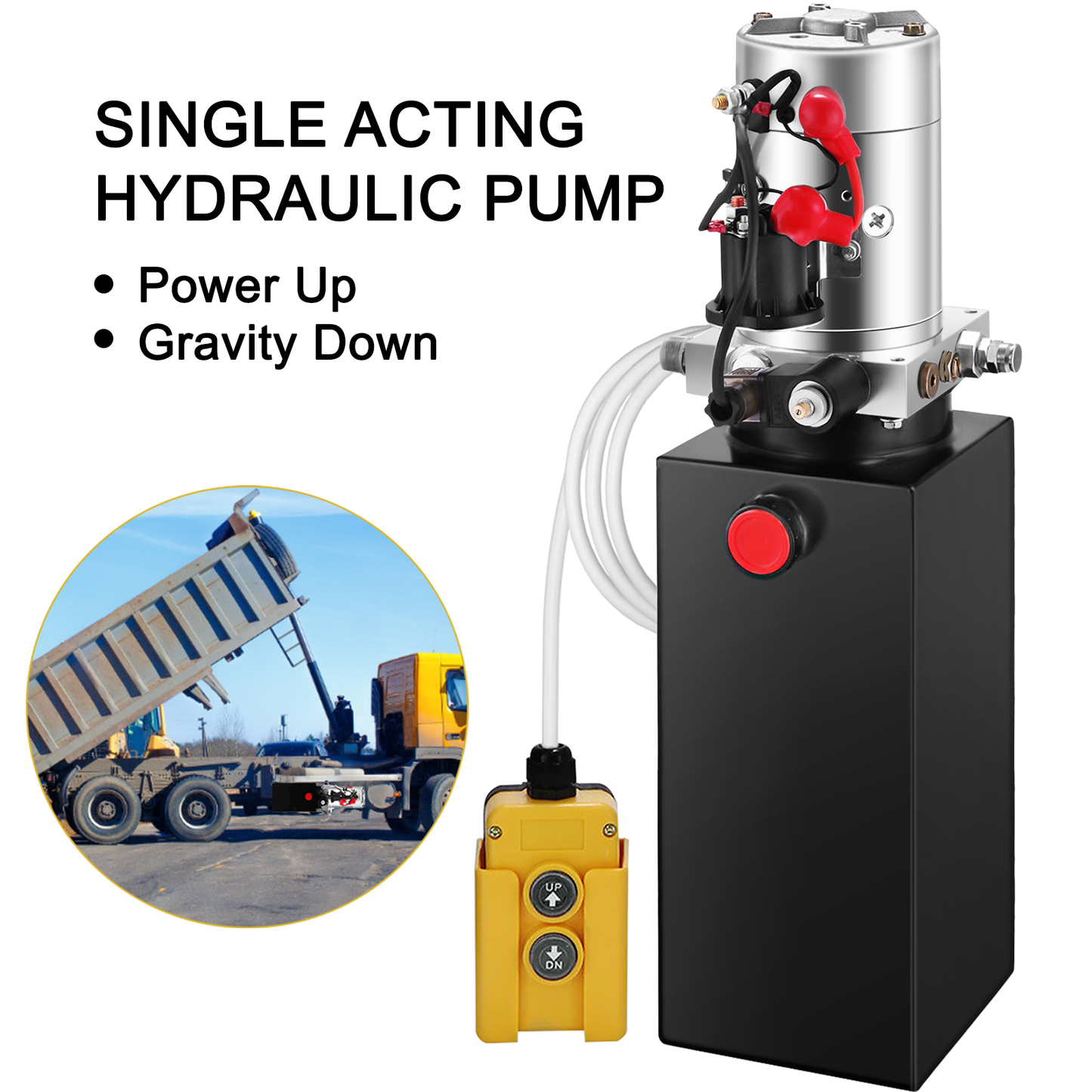

Single acting Power-Up/Gravity Down
1500 PS Max Relief Setting on B port
4 Quart Metal Reservoir
SAE # 1 Port, Horizontal mount
Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid
1 Ã 4 Quart Single Acting Hydraulic Pump
1 Ã English Manual
Several Related Accessories (Including connectors)
Mode: Single-Acting Power-Up/ Gravity-Down
Tank Material: Metal
Tank Capacity: 6L/ 6Quart/ 1.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal/ Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft/ 4.5 m
1 x 6 Quart Double Acting Hydraulic Pump
1 x English Manual
1 x SAE # 6 Connectors
Material of tank: Metal
Displacement of hydraulic pump: 0.562-4.350GPM
Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 0.37-5.5KW
Motor voltage: DC12V
Fuel tank: 8L
Single acting Power-Up/ Gravity Down
1500 PS Max Relief Setting on B port
8 Quart Metal Reservoir
SAE # 6 Port, Horizontal mount
Hand held pendant with about 15 foot (4.5 m) removal cord and start solenoid
1Ã 8 Quart Single Acting Hydraulic Pump
1Ã Instruction Manual
Several Related Accessories (Including Connectors)
Model: 10QSAMHP
Tank Material: Metal
Tank Capacity: 10L/ 10Quart/ 2.5 Gal
Flow: 2.0 GPM
Max. Relief Valve Setting A Port: 3200 PSI
Max. Relief Valve Setting B Port: 1500 PSI
Rated Speed: 2850R/MIN
Voltage: DC12V
Power: 1.6KW (Rated), 3.0KW (Max)
Duty: 3 Min
Traffic: 1.1 cc/r
Rotation: Clockwise
Connector: SAE # 6
Mount Position: Horizontal/ Vertical
Control: Solenoid and Handheld Pendant
Pendant Control Length: 15ft/ 4.5 m
1 x 10 Quart Double Acting Hydraulic Pump
1 x English Manual
Several Related Accessories (Including a Connector)
Condition: brand new
Tank: Steel, 3.17 gallon horizontal or 12 quart
Motor: 2.0 hp, 12v, 2850 rpm, S3 Duty
Pressure: 17.5Mpa
Gear Pump: 128 Cu In/rev
System Relief Valve: 3200 PSI
Solenoid Release Valve: 12VDC
Hand held pendant with 15 feet(4.5m)removal cord
1 x 12 Quart Single Acting Hydraulic Pump
1 x Necessary tools kit
1 x English manual
Tank Material: Iron Reservoir
Tank Capacity: 15L
Acting: Single-Acting Power-Up/ Gravity Down
Pressure: 3200 PSI Max. Relief Setting For Increased Lifting Power on A port
Voltage: 12V DC
Pump: 2.0 GPM
Relief Setting for Increased Lifting Power On A Port
SAE #6 Port, Horizontal Mount
Handheld Pendant with 20' Removable Cord
1 x 12 Volt Hydraulic Pump For Dump Trailer 15L Single Acting
1 x English Manual
Material of Tank: Metal
Fuel Tank: 20quart
Power / Gravity: Single Acting Power-Up/Gravity Down
PSI: 3200 PSI Max. Relief Setting For Increased Lifting Power on A port
Reservoir: 20 Quart Steel Reservoir
Port: SAE # 6 Port, Horizonal mount
Hand held pendant with 15 feet(4.5m)removal cord
Gross Weight: 34.0 lb (16.4 kg)
Package Dimensions (L x W x H): 23.2" x 11.4" x 11.0" (59 x 29 x 28 cm)
1 X 20 Quart Single Acting Hydraulic Pump
1 X English Manual
Several Related Accessories

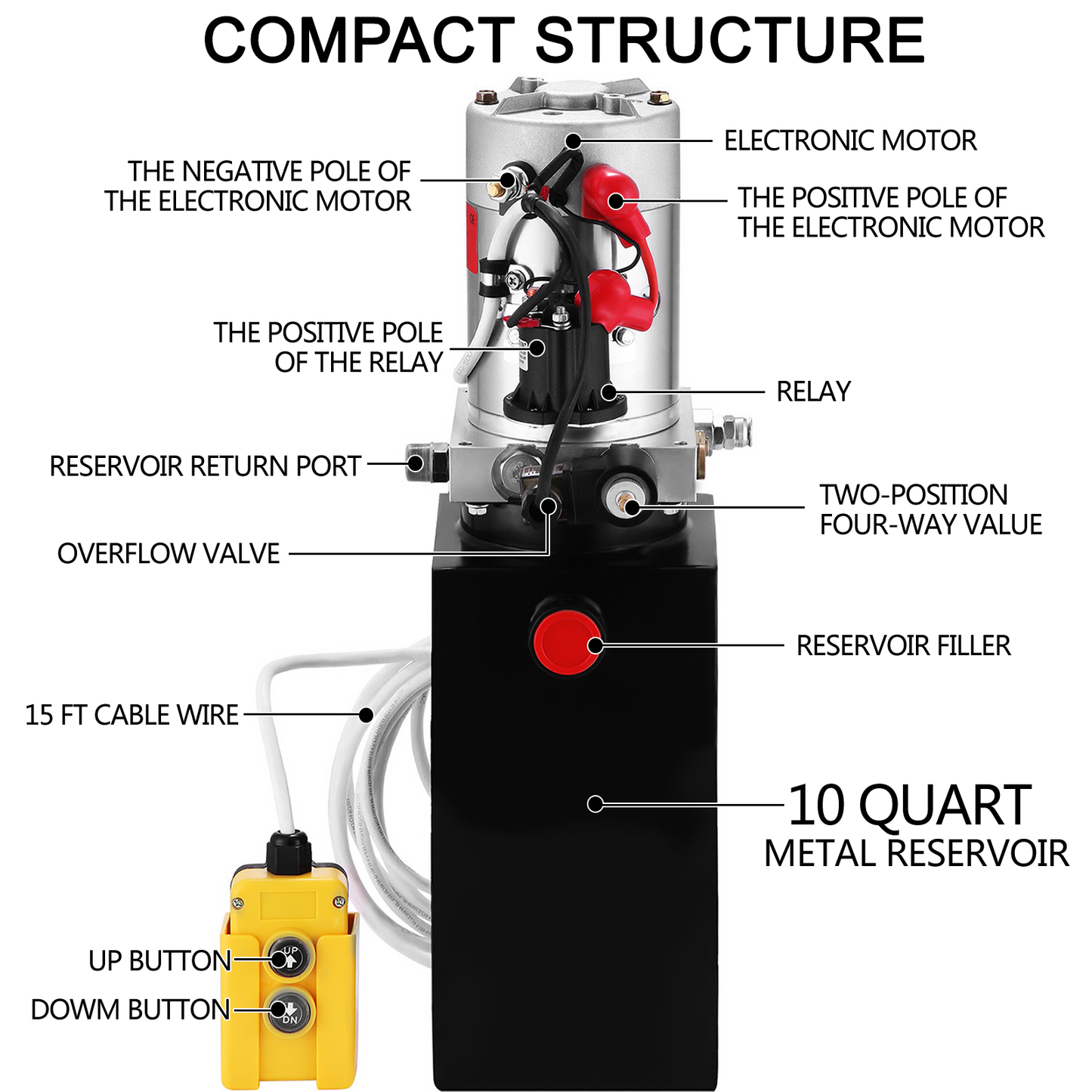

Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3kw) and a 13-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a single-acting pump for power up and gravity down.
Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.

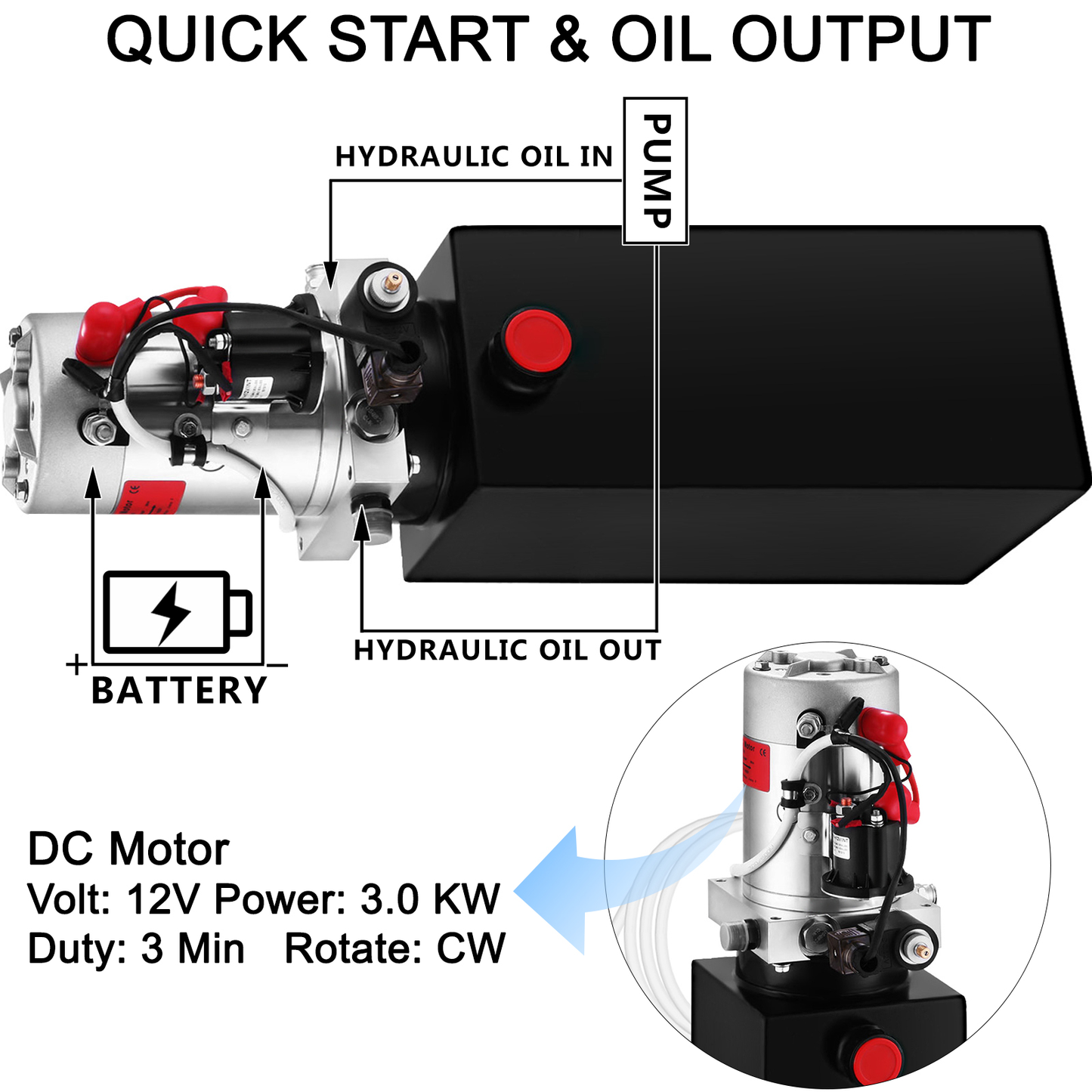

Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

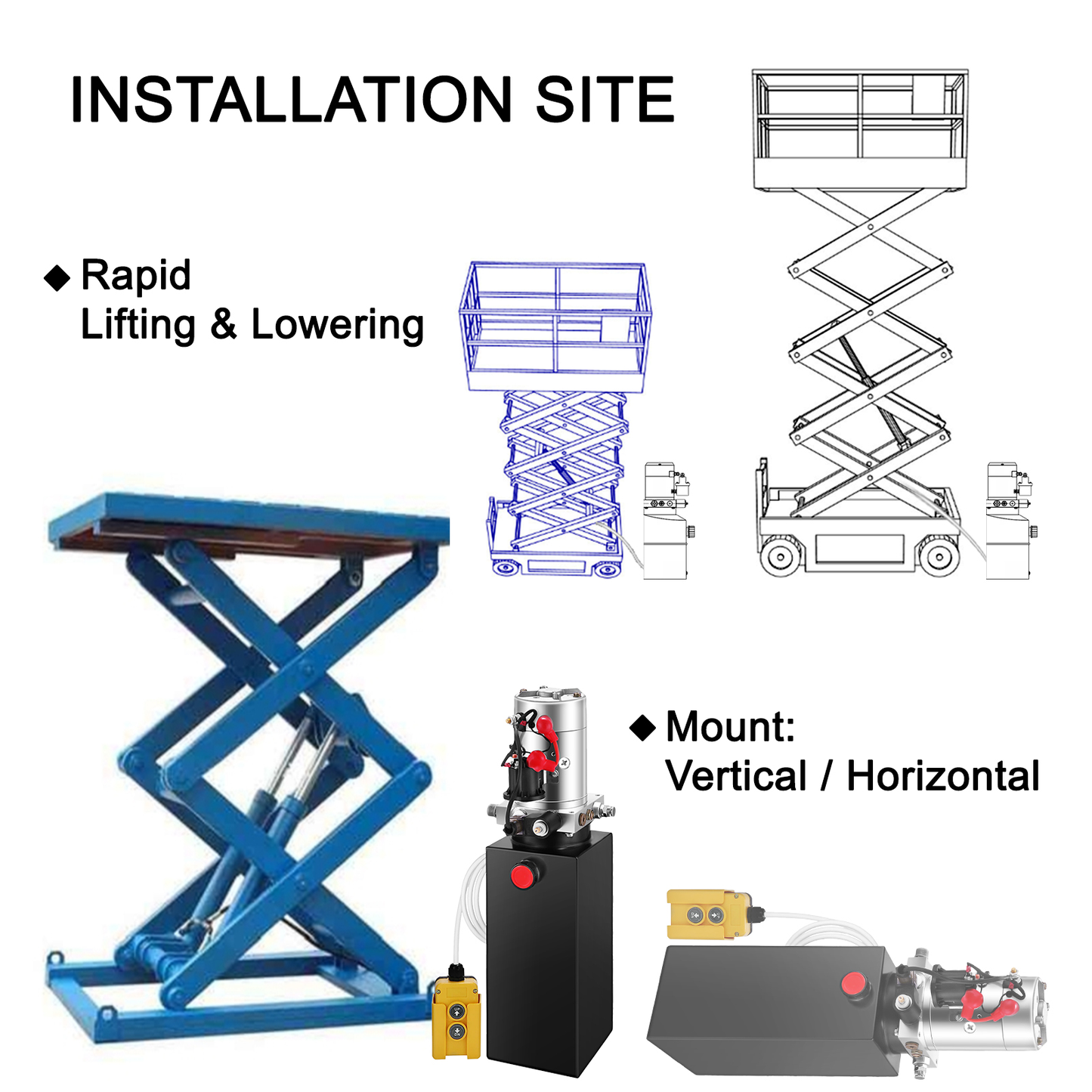

Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
-
Directions for use:
According to hydraulic principle diagrams, with clean connecting hydraulic powe unit and oil cylinder tubing.
According to the motor and the power of the electromagnetic valve marked characteristics( ac, dc voltage is properly connected.)
Inching motor observe any abnormal phenomenon. In actuators, without load, start the electric, short run test, check whether all the parts run smooothly, determine and correct after loading step by step to normal operation.
Precautions:
The factory production of a hydraulic power unit when leaving the factory, the system pressure has been set. If you want to change, the user according to the actual situation on their own through the knob to adjust the system pressure regualting valve, but no more than nominal pressure of the system.
Carefully check the motor and the electromagnetic valve connection. It is strictly prohibited to pick up.
In the installation and debugging for the first time, we must keep the internal fuel tank oil level, after a work cycle, oil tank should be made up, but not be too full.
Electrical and electromagnetic valve connection should pay special attention to the supply characteristics( ac, dc voltage and has the same sign. Ac power motor shell must be reliable grounding, forbidden ground operation. The motor terminal box note waterproof, moistureproof. Connection for the first time, inching motor check direction, from the motor back end, spin to counterclockwise. Absolutely forbidden motor reverse reverse rotation and oil-free idling.
When the gas tank hydraulic oil must be filtered, filtration precision is not lower than 25 microns.
Power unit can't filter the impurities inside the hydraulic cylinder. So the hydraulic cylinder internal must clean. Lest cause valve failure. Tubing must also be clean.
Maintenance:
We must keep the actuators,and pipeline cleaning,prevent dirt from entering the system.
We must keep the tank oil level,after a work cycle, proper fill oil.Such as pump suction air will cause the damage of pump and the damage of the seal.
100 hours after the running of hydraulic oil for the first time to join,change the new oil.after a year(1500 hours) to replace a new oil.
Working environment temperature high use hydraulic oil of high viscosity,low working environment with low viscosity hydraulic oil.
